BULL 22-X Mini-Excavator
Standard Features
- Kubota D1105 engine
- TF hydraulic piston pump
- Adjustable boom foot
- Variable track
- Track motor protection and insulation
- Dual forward speed (low-high)
Warranty & Delivery
- Extended warranty: Up to 36 months
- Delivery available anywhere in the U.S.
Performance & Specifications
Operating weight: 4,800 lbs
Pilot hydraulic controls
Tracks: Rubber, 9.06 inches
Motor power: 22 HP (Kubota D1105 engine)
Breakout force: Up to 4630 lbs (depending on configuration)
Dimensions: 187.01 x 42.91 x 97.64 inches
Traveling speed: 2.17 mph
Chassis width: 42.91–52.36 inches
Track width: 9.06 inches
Track length: 60 inches
Maximum digging depth: 88 inches (depending on configuration)
Standard Features
Variable track (42.91–52.36 inches)
New reinforced arm with auxiliary line installed
New chassis designed by BULL with 9.06-inch wide tracks
Front blade with improved bulldozer power and a lift height of up to 11.42 inches
Hydraulic thumb offered exclusively by BULL: an invaluable accessory that enhances the versatility and efficiency of your BULL 22-X, replacing a grapple for multi-purpose use
Includes 3 buckets (8 inches, 16 inches, and 40 inches)
Includes a quick-release clip
Complete toolbox
Warranty and Delivery
Complete toolbox and replacement filters included
Delivery available anywhere in the United States
Warranty: Up to 36 months
Financing available
Spare parts available
BULL 22-X Features
Find out more about the BULL 22-X
22-X
Kubota D1105 Engine
Delivers optimum power (22 HP) and high efficiency with its renowned 3-cylinder design. The Kubota D1105 engine is known for its reliability and performance—the perfect match for the BULL 22-X.
22-X
Adjustable Boom Foot
Ensures exceptional precision and maneuverability, ideal for working in confined spaces with a wide opening angle.
22-X
TF Hydraulic Pump
Equipped with a high-performance TF hydraulic piston pump (flow rate: 16.11 gallons/min), the BULL 22-X offers powerful, controlled hydraulic output, ensuring optimal performance for demanding jobs.
22-X
Dual Forward Speed (Low-High)
Offers flexibility by allowing the operator to adjust speed based on on-site requirements and surface conditions.

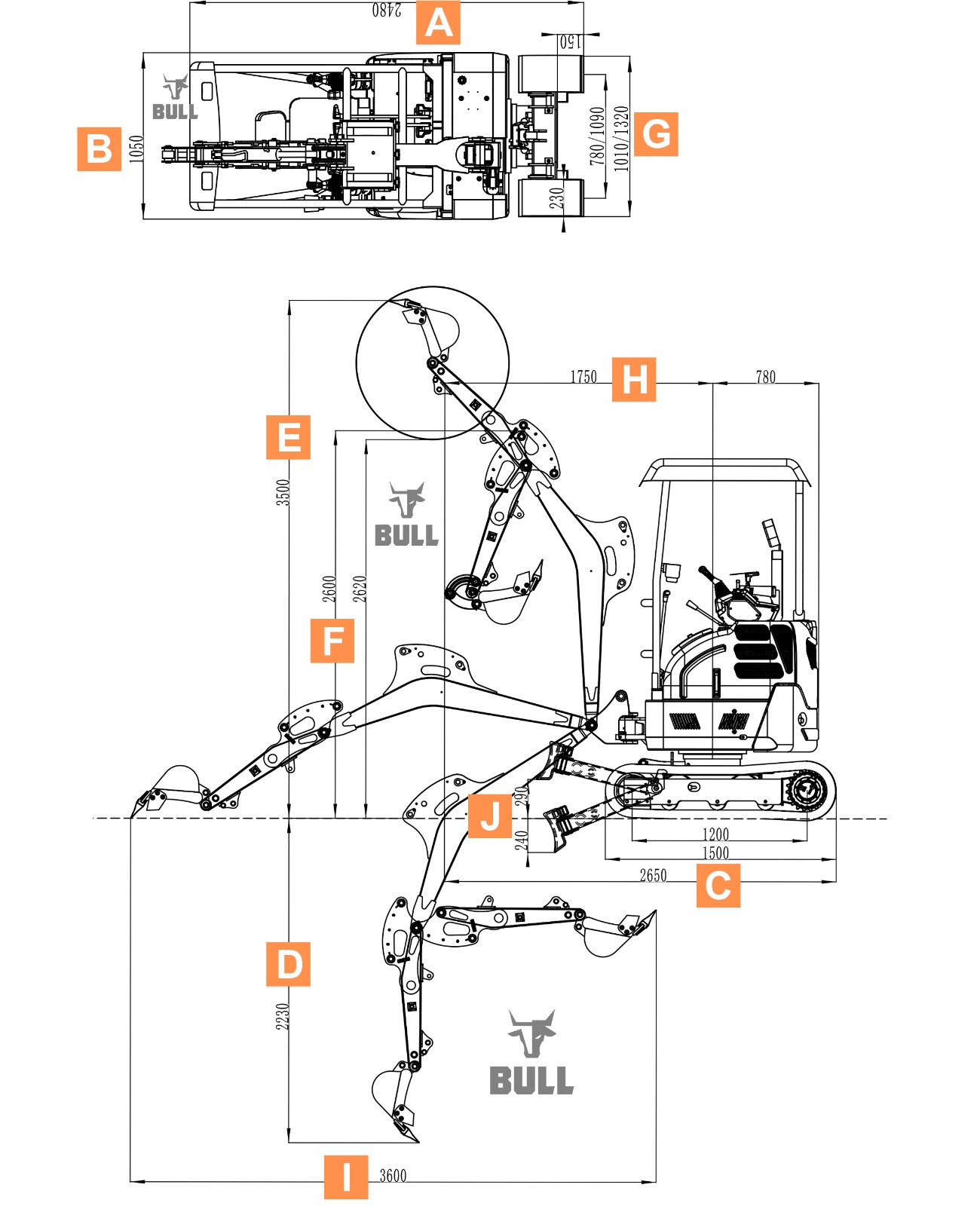

BULL 22-X DIAGRAM
Features of the BULL 22-X.
