BULL 25-X Mini-Excavator
Standard Features
- Kubota D1105, 3-cylinder diesel
- Swing Boom: Boom foot with lateral swing function
- Hydraulic pump : TF piston pump (Model TFA10VO28/53R)
- Travel Modes: Dual-speed travel
- Track Frame: Variable-width undercarriage
- Track Motor Protection: Enclosed drive motor protection
- Chassis:: New frame design engineered by BULL
- Front Blade:: Reinforced dozer blade with lift height up to 11.4”
- Tracks: 10” wide rubber tracks
Performance & Specifications
Digging Force: Up to 5,510 lbs
Hydraulic Joysticks: Side-mounted pilot controls
Tracks: 10” wide rubber tracks
Hydraulic Pump Flow: Up to 16.4 gallons per minute (GPM)
Engine Cooling: Liquid-cooled (water)
Operating Weight: 5,510 lbs
Top Travel Speed: 4.0 mph
Dozer Blade Lift Height: 9.8” – 11.2”
Max Ground Reach: 135”
Variable Track Width: 45.3” – 59.1”
Overall Width: 51.6”
Max Digging Depth: 95.3”
Standard features
Variable Undercarriage: Adjustable from 45” to 59” for better stability or narrow access
Reinforced Boom with Auxiliary Hydraulic Line: Pre-installed for quick attachment compatibility
Hydraulic Thumb (Exclusive to BULL): Adds true gripping power and replaces the need for a separate grapple attachment
Three Buckets Included: 8”, 17”, and 47”
Professional Hydraulic Quick Coupler: For fast bucket swaps without manual pins
Complete Tool Kit: Comes with each machine
Warranty and delivery
Included: Full tool kit and replacement filter set
Delivery Available Nationwide: Contact us for discounted rates
Warranty: Extendable up to 36 months
Financing Available: Flexible options on approved credit
Spare Parts: Readily available (subject to inventory)
Features
Features of the BULL 25-X.
25-X
Motorization Kubota D1105
Offering optimum power and complete efficiency with its renowned 3-cylinder design, the Kubota D1105 engine is known for its reliability and performance. It is the ultimate ally for the BULL 25-X.
25-X
Adjustable boom foot
Provides exceptional precision and maneuverability, enabling operations in tight spaces thanks to its wide opening angle.
25-X
Hydraulic pump
BULL has equipped the BULL 25-X with the renowned “TF” hydraulic pump to significantly increase its hydraulic performance. This pump ensures maximum and controlled hydraulic power, guaranteeing optimal results for all your tasks.
25-X
Dual Forward Speed (Low-High)
Offers enhanced flexibility, allowing you to adjust the speed to suit site-specific needs, depending on the type of surface being traversed.

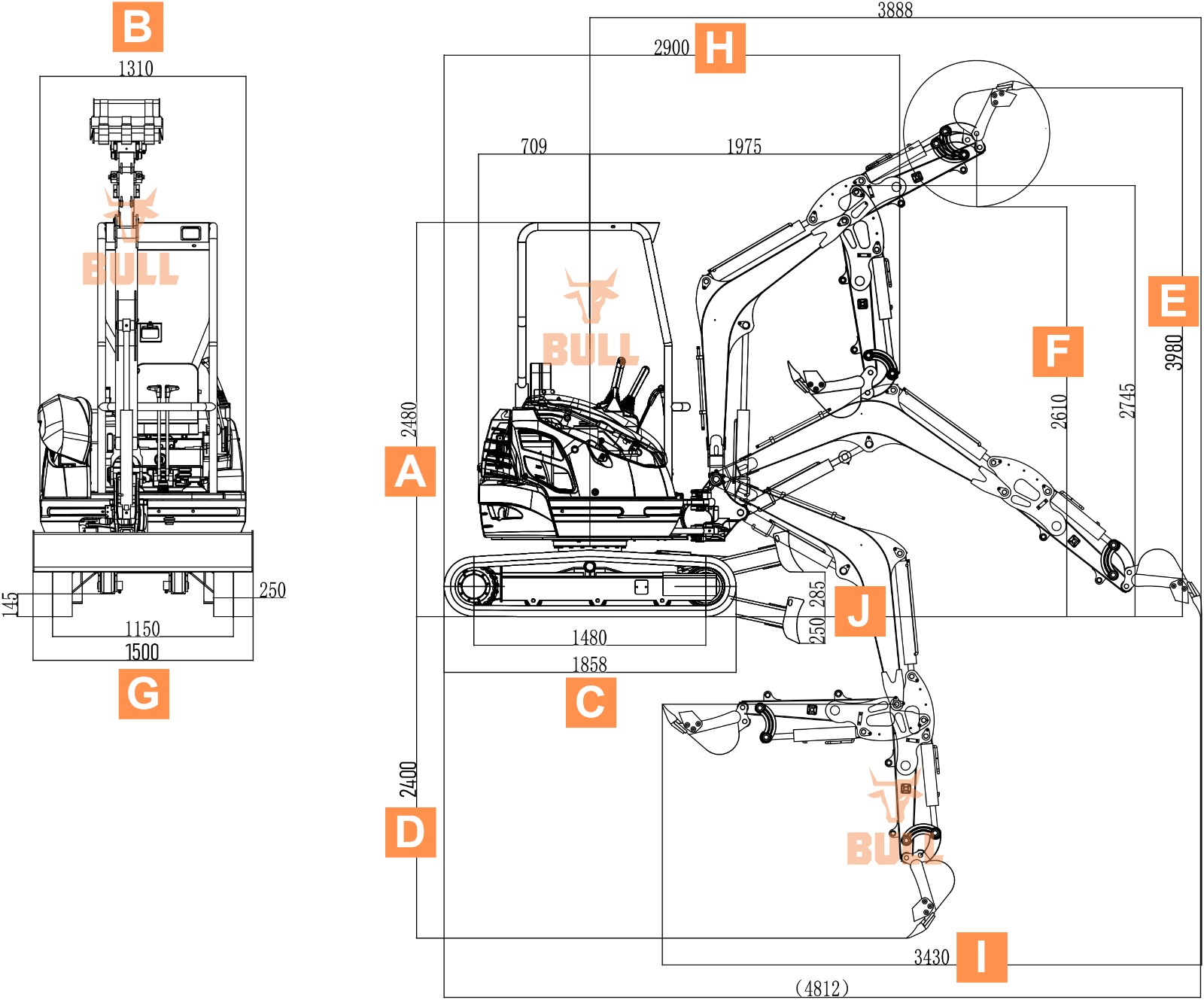

BULL 25-X DIAGRAM
Features of the BULL 25-X.
